Product Introduction

Peman's new generation of air classifiers is available in vertical and horizontal configurations depending on the material, and in single-rotor or multi-rotor designs depending on capacity. Developed through in-house R&D, it is a new type of classifying equipment capable of separating powders to different fineness levels. Technically, it adopts an impeller classifying system driven by a direct-coupled motor or a shaft-sleeve belt drive, and can be paired with a frequency converter for stepless speed adjustment to suit various powder fineness requirements, with a high degree of automation. The new single-wheel classifier has a compact structure and small footprint with strong versatility, and can be flexibly combined in series with a variety of equipment (surface modification machines, spheroidizing machines, roller mills, vertical mills, impact mills, etc.) to form a closed-circuit system.

Scope of Application

　　Suitable for forming a closed-circuit system with various mills (jet mills, ring roller mills, ball mills, Raymond mills, etc.) for secondary classification of fine powder particles.

　　The new single-wheel classifier can reach a classification fineness of 4000-5000 mesh.

Product Features

01Highly adjustable. Classification fineness is controlled by a variable-frequency motor, and the classifying system can be adjusted to obtain the target product as required.
02The vertical classifying impeller is made of wear-resistant material with high precision, stable transmission and a long service life.
03The secondary air system uses an electrically controlled air valve to precisely regulate the air volume, with a high degree of automation.
04High classification efficiency: as material passes through the high-speed classifying wheel and the swirling flow created by the secondary air, fine particles mixed with or adhering to coarse particles are further separated, improving both classification efficiency and precision.
05Fully automatic PLC control system,simple to operate, supporting centralized control, remote diagnostics and other automated and intelligent integration.

Accessories

Process Flow Diagram

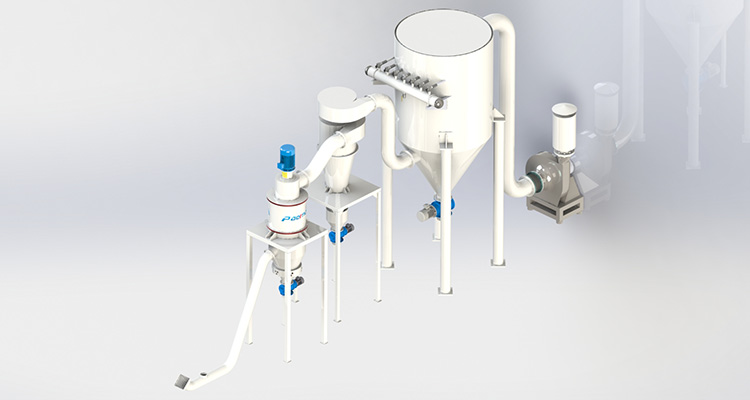

气流分级机系统流程图2

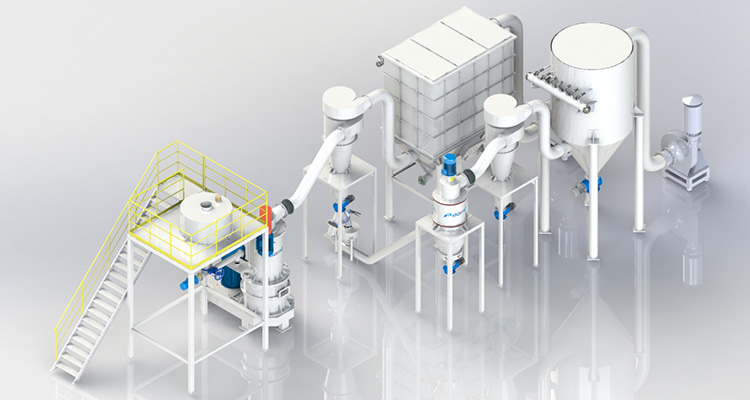

超细机械粉碎机+气流分级机系统流程图2

Technical Parameters

Parameter / Model	FL300	FL360	FL450	FL500	FL600	FL800	FL1000	FL1200
Capacity (kg/h)	200-1000	300-2000	1000-3000	3000-5000	5000-8000	8000-15000	15000-20000	20000-30000
Product size d97 (μm)	5-150	5-150	5-150	8-150	8-150	10-150	15-150	20-150
Classification efficiency	60-90	60-90	60-90	60-90	60-90	60-90	60-90	60-90
Installed power (kW)	11.5-42.5	18-60	63.5-105	77-120	77-140	120-160	90-200	170-310

Parameter / Model	FW200	FW280	FW400	FL520	FL630	FL800	FL800	FL800
Capacity (kg/h)	10-100	20-200	50-500	100-1000	200-2500	400-4000	400-4000	400-4000
Product size d97 (μm)	3-45	3-45	3-45	3-45	3-45	3-45	3-45	3-45
Classification efficiency	60-80	60-80	60-80	60-80	60-80	60-80	60-80	60-80
Installed power (kW)	7-11	15-19	21-28	23-30	52-60	67-77	67-77	67-77
