SDS Dry Flue Gas Desulfurization Grinding System

Peman is an enterprise engaged in the R&D and production of grinding mills specifically for SDS dry desulfurization with sodium bicarbonate. The sodium bicarbonate (baking soda) grinding mill can effectively remove 95% of SO2 and 99% of HCl from exhaust gas, with high efficiency and low cost. There are now over 2,000 SDS dry desulfurization cases in application, widely used in numerous steel plants, coking plants, waste incineration, petrochemicals, lime kilns, industrial silicon, power generation, cement, and other industries.

Click for a free plan quote 86 150-5445-0868

60 second response

30 minutes reply

24-hour customization

Solution Flow Diagram

66116da29956b4785c0976bd77aa70d

Peman Production Line Meets the Following Requirements

01
Specialization
Adapts to ultrafine powder, with a deagglomerating and disaggregating effect on false agglomerates.
02
Precision
Ultrafine grinding / classification of 2μm-150μm, with adjustable and controllable finished particle size.
03
Intelligent Control
PLC automated control system, easy to operate.
04
Eco-Friendly
Fully enclosed negative-pressure operation, no dust escape.

Process Description

Raw material enters the mill grinding chamber through a metering feeder. The material is subjected to mutual impact, collision, friction, shearing, and extrusion with the high-speed rotating grinding disc and particles to achieve ultrafine grinding. The ground material is conveyed by the rising airflow to the impeller classification zone, where, under the action of the classifying wheel's centrifugal force and the fan's suction, coarse and fine powders are separated. Qualified fine powder is conveyed by the conveying fan into the desulfurization tower and flue gas duct for reaction, while unqualified powder is returned by the internal classifier to the grinding chamber for re-grinding until qualified.

Main Equipment Configuration Names, Models, and Quantities

No.	Name	Brand, Model, Specification	Qty	Unit

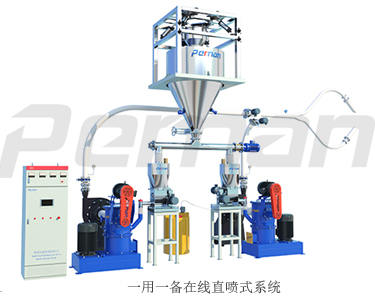

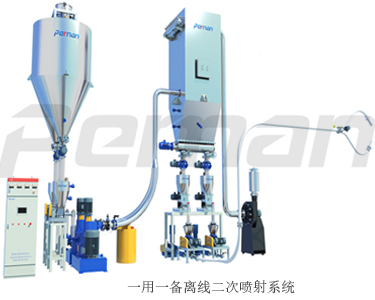

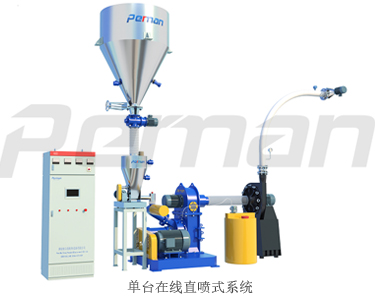

The buyer shall configure the feeding, storage, and feeding devices according to project conditions; Common grinding systems currently include direct-injection systems and secondary-injection systems. Both can be arranged with independent, forward/reverse screw, or one-silo-two-outlet standby configurations according to the project; The table below lists the main equipment of the grinding system (also selectable according to the project):
1	Metering feeding system	Standard motor (brand specified by user)	1	set
2	Grinding system	Standard motor (brand specified by user)	1	set
3	Classification system	Standard motor (brand specified by user)	1	set
4	Conveying fan system	Standard motor (brand specified by user)	1	set
5	Metering feeder inlet flexible connection	Material: non-metallic	1	pc
6	Metering feeder outlet flexible connection	Material: non-metallic	1	pc
7	Fan inlet flexible connection	Material: non-metallic	1	pc
8	Main equipment frame	Carbon steel (material can be specified)	1	set
9	Equipment damping pad	Rubber	1	set
10	Anchor bolts	Carbon steel	1	set
11	Classifier air seal	Hose, ball valve, solenoid valve, filter pressure-reducing valve	1	set
12	Fan online sampling port	Carbon steel, 1/2 ball valve	1	pc
13	Temperature sensor	Quality brand (brand can be specified by user)	1	pc
14	Vibration sensor	Quality brand (brand can be specified by user)	1	pc
15	Anti-caking dosing system	PE barrel, spray nozzle, pressure-reducing valve, metering pump (propylene glycol agent provided by buyer)	1	set
16	Inlet silencer	Material: carbon steel	1	pc
