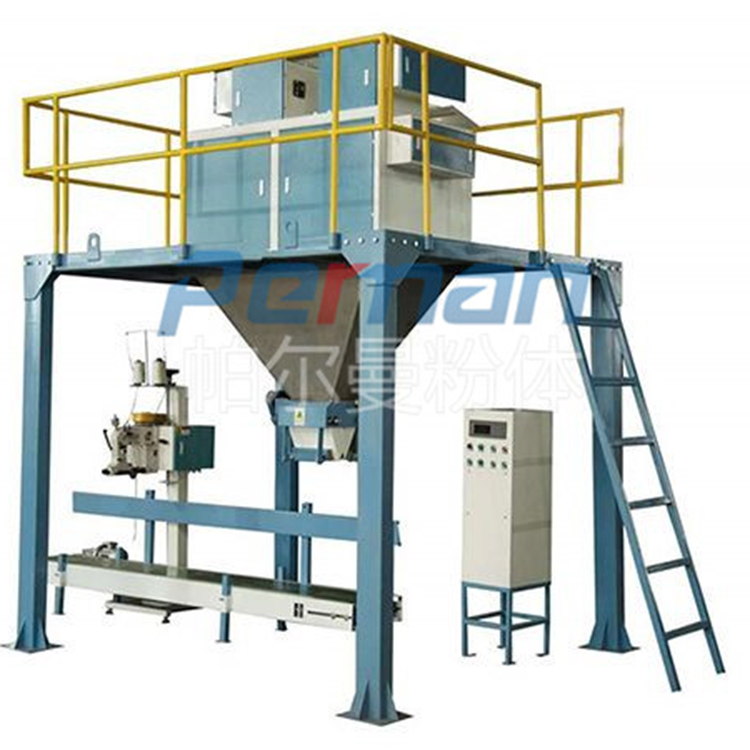

Small-Bag Packaging Machine

The open-mouth small-bag packaging machine uses a gravity free-flow feeding structure with three feeding speeds (high, medium and low), ensuring both weighing speed and accuracy. It features a simple structure and reliable performance, and is widely used for the quantitative packaging of free-flowing granules and powders into open-mouth bags.

1.  Gravity free-flow three-speed feeding for fast packaging.

2.  Compact with a small footprint, flexible placement and a low price.

3.  High-precision load cell with suspended net-weight metering.

4.  Material contact parts are made of stainless steel, preventing contamination and resisting corrosion to ensure reliable operation under harsh conditions.

5.  The packaging machine control system uses PLC program control with automatic/manual switching. Automatic mode is used in normal operation, while manual mode is for commissioning, maintenance and emergency handling, making operation simple and maintenance convenient.

6.  The weighing instrument is a high-sensitivity Mettler Toledo digital indicator featuring cumulative weight display, count display, shift totals, automatic zero calibration, automatic tare, automatic rejection of minor disturbances, automatic drop correction, out-of-tolerance alarm and fault self-diagnosis. The indicator is equipped with multiple communication interfaces for networking, real-time monitoring, remote control and networked system management.

7.  The bag-hanging mechanism can be adjusted up and down to suit the bag size, accommodating various bag types and packaging specifications

8.  Both the electrical and pneumatic control cabinets use a dust-proof structure with good sealing to avoid additional faults caused by dust contamination. The packaging machine is fitted with a dust collection port to prevent contamination of the surrounding working environment during packaging.

1.  We provide technical support including technical consultation, site surveys, scheme design, equipment matching and personnel training

2.  Custom (non-standard) design based on the user's and site's actual needs, product characteristics and process requirements

3.  Optional devices

SCADA system  Vacuum system   Bag expansion system   Anti-corrosion and explosion-proof   Dust collection system   Bag filter  Cyclone dust collector   Vibrating device   Conveying device    Bag closing device    Heat sealing  Remote monitoring and management of weighing data
