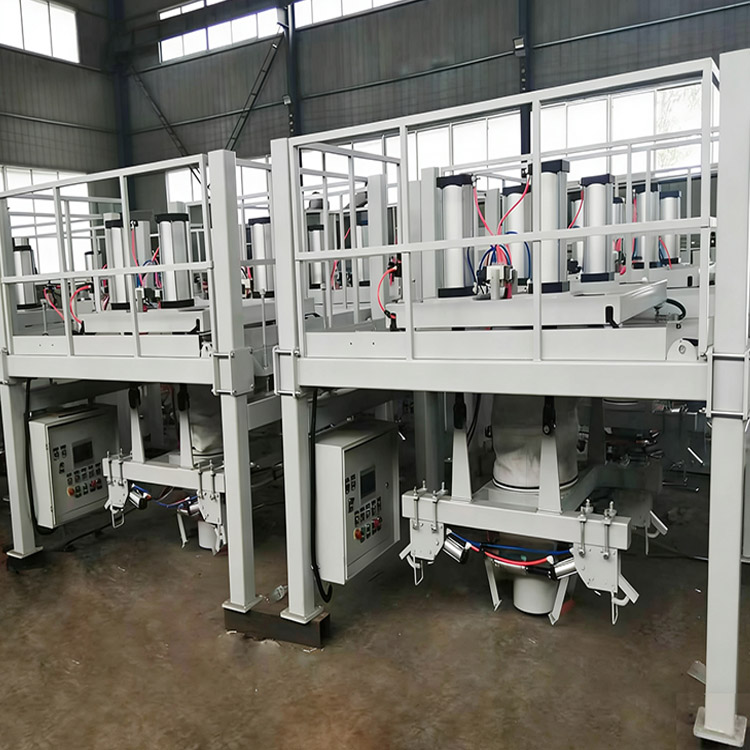

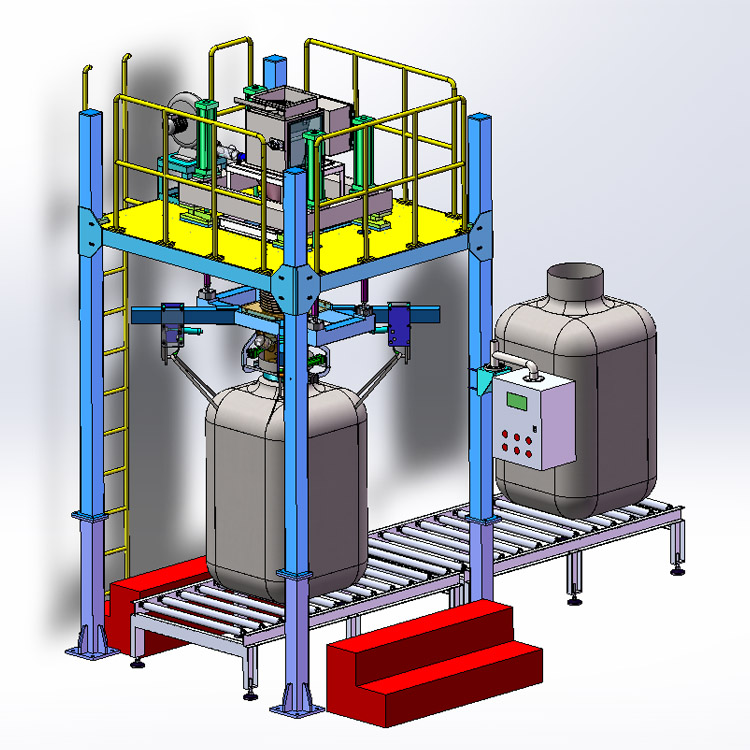

Jumbo Bag Packaging Machine

The jumbo bag packaging machine uses feeding structures such as a rotary star valve, screw, arc gate and vibrating feeder. Control is by stepless variable-frequency speed control or multi-stroke cylinder control, combined with a precision control valve to complete automatic packaging.

After the bag is placed, the packaging machine automatically completes weighing, bag releasing and unhooking. Jumbo bags can be transported manually, by forklift, by conveyor or by other means.

This is an economical packaging machine with a simple structure and small footprint. It is suitable for the quantitative packaging of free-flowing bulk materials such as granules and powders.

1. Uses a rotary star valve feeding structure with stepless variable-frequency speed control, combined with a precision control valve to complete automatic quantitative packaging.

2. The packaging machine control system uses PLC program control with automatic/manual switching. Automatic mode is used in normal operation, while manual mode is for commissioning, maintenance and emergency handling, making operation simple and maintenance convenient

3. The weighing instrument is a high-sensitivity Mettler Toledo digital indicator featuring cumulative weight display, count display, shift totals, automatic zero calibration, automatic tare, automatic rejection of minor disturbances, automatic drop correction, out-of-tolerance alarm and fault self-diagnosis. The indicator is equipped with multiple communication interfaces for networking, real-time monitoring, remote control and networked system management.

4. Both the electrical and pneumatic control cabinets use a dust-proof structure with good sealing and an IP65 protection rating, avoiding additional faults caused by dust contamination. The packaging machine is fitted with a dust collection port to prevent contamination of the surrounding working environment during packaging.

5. An optional touch-screen operator interface provides dynamic display, monitoring, statistics and fault output, with a help menu for simple, easy-to-understand operation.

1. We provide technical support including technical consultation, site surveys, scheme design, equipment matching and personnel training

2. Custom (non-standard) design based on the user's and site's actual needs, product characteristics and process requirements

3. Optional devices

SCADA system  Vacuum system   Bag expansion system   Anti-corrosion and explosion-proof   Dust collection system   Bag filter  Cyclone dust collector   Vibrating device   Conveying device    Bag closing device    Heat sealing  Interlock control, remote monitoring and management of weighing data
