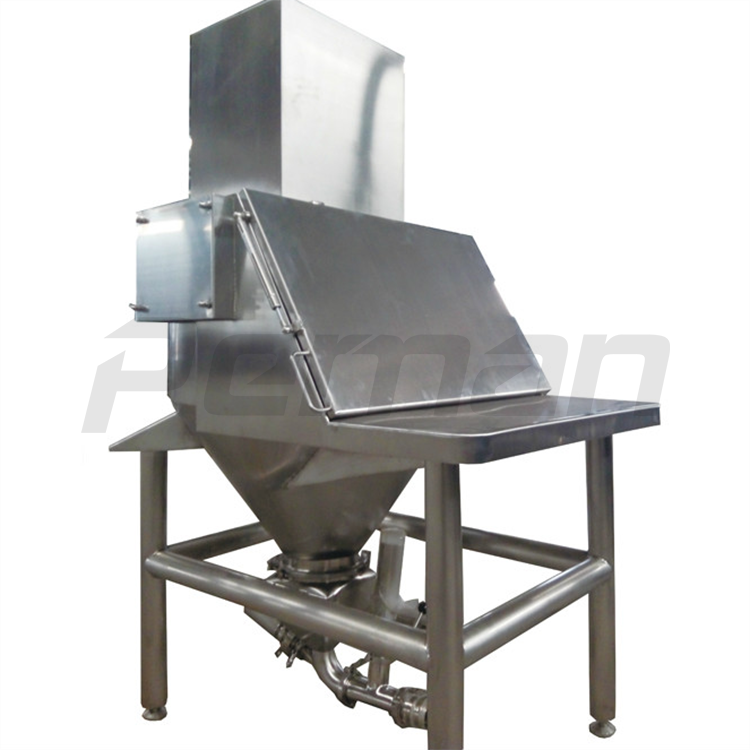

Dust-Free Bag-Dumping Station

The dust-free bag-dumping station, also known as a manual unpacker, refers to manually unpacking and dumping small-bag packaged powder or granular materials so that the material falls into the storage hopper by gravity to complete the bag emptying and discharging work. Throughout the unpacking process, filters and a dust-removal fan collect the dust, preventing any leakage so operators can work in a clean environment.

custom

150-5445-08687*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

Product Features

01The equipment features a dust-removal function that prevents dust from flying during bag opening and dumping, reducing material loss;

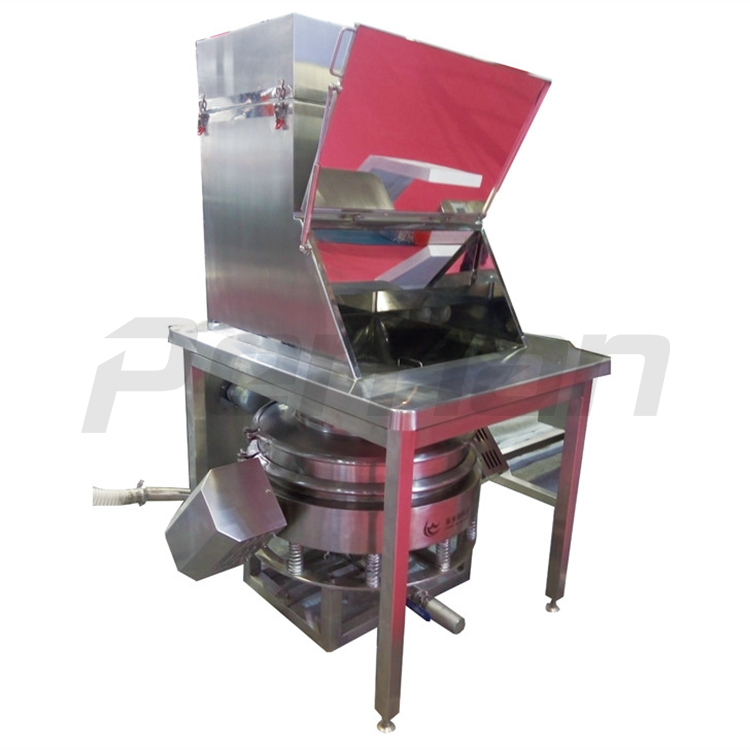

02A vibrating screen can be installed inside the dust-collection dumping station to effectively remove foreign matter from the material;
03The equipment adopts intelligent control, with a high degree of automation and simple operation;
04The equipment has a dead-corner-free internal design, making it easy to disassemble and clean;

Functional Configuration

Feeding specification: 0-6 T/H, Feeding method: single feeding port

Material lifting: manual / lift bucket / lifting cart / forklift

Anti-bridging type: pneumatic high-frequency vibration / activated-hopper vibration

Reverse-blow type: pneumatic pulse

Optional equipment: magnetic separator / single-layer vibrating screen / coarse crusher / bag-collecting device / metering, weighing and conveying / waste-bag collection
