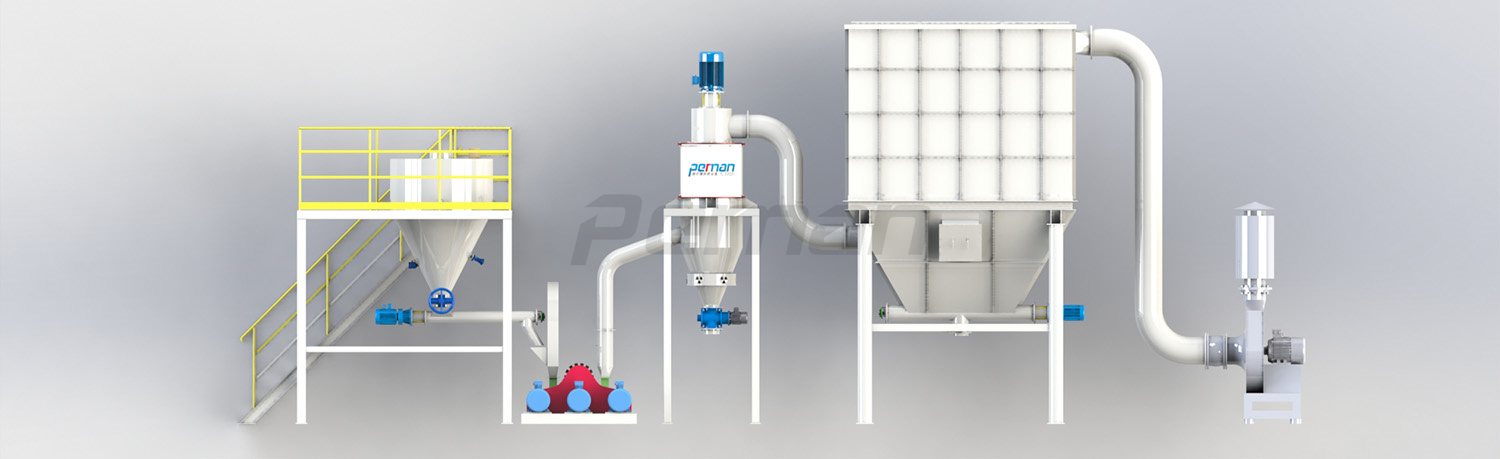

The SQH shaping and spheroidizing machine is a powder shaping model developed by Peman for anode material powder deep-processing technology and deeply developed for the Chinese market. It is a machine that integrates mechanical and pneumatic mills, combining shaping, deagglomeration, and powder crushing functions into one multi-functional model.
150-5445-08687*24 hours hotline
Guide installation
Chauffeur pick-up
After-sales service
The SQH shaping and spheroidizing machine is a powder shaping model developed by Peman for anode material powder deep-processing technology and deeply developed for the Chinese market. It is a machine that integrates mechanical and pneumatic mills. It combines shaping, deagglomeration, and powder crushing functions into one multi-functional model. The shaping machine can flexibly pair with various mills and greatly improve the performance of powder products, and can be widely used in the field of anode material powder shaping.
Widely used for the shaping and classification of flaky, acicular, and fibrous materials such as graphite. It can meet the shaping requirements of anode materials.
| Parameter / Model | SQH-350 | SQH-600 |
| Host part (kW) | 15x3 | 30x3 |
| Secondary classification (kW) | 18.5-22 | 30-45 |
| Fan (kW) | 37-45 | 55-90 |
| Auxiliaries (inlet, outlet, etc.) (kW) | 7.5 | 7.5 |
| Tap density increase rate (%) | 10-30 | 10-30 |
| Output (kg/h) | 300-700 | 500-2500 |
